F2 heat shrink tubing polyolefin with UL approval

UL Zeichen-100px
Feuerschutzschlaeuche_Kabelschutz_fuer_Steuerkabel_Giesserei_Schutz_vor_Funkenflug_1500_Grad

Applications

Flexible, cross linked polyolefin heat shrink tubing meeting the highest demands in all industrial sectors.
UV-resistant.
Self-extinguishing, high operating temperature, UL listed.
Shrinkage rate 2:1
Available in many colours.

Technical data - Specification

Operating temperature:            -55°C to +135°C
Dielectric strength:                    20 kV/mm min
Flammability:                              self-extinguishing
Tensile strength:                        10 MPa min
Ultimate elongation:                  250% min.
Elongation after ageing:           168h at 175°C

Further technical details to be found on the data sheet.

Data sheet

pdf_download

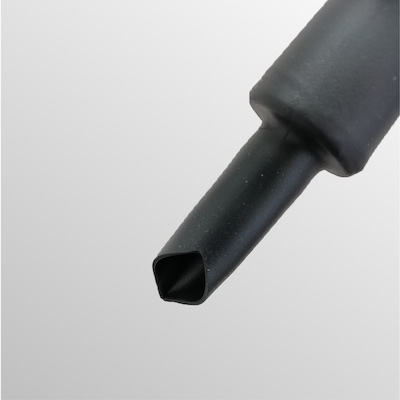

F2 Shrink tube
